 Drop in units Coaxial units

F series, ultra small with flange mount

Click for details

D series, conventional thru hole mount

Click for details

Coaxial series with standard connectors

Click for details

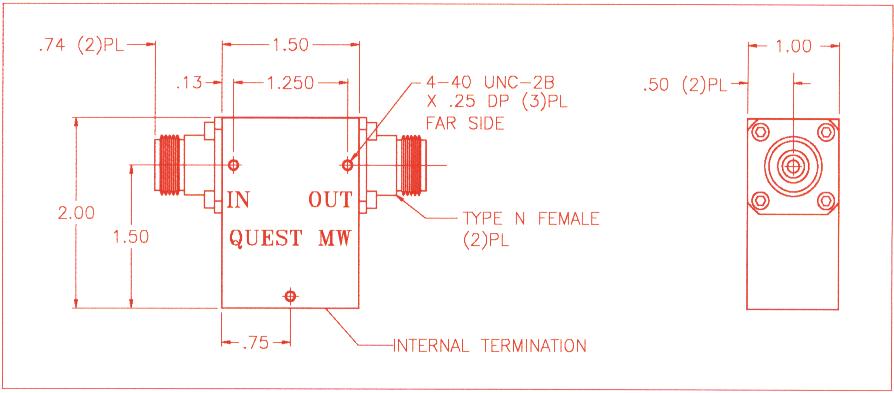

High Power Coaxial Isolators for 800 to 2000 MHz Applications

Model Number

Frequency (MHz)

Isolation (dB) Min.

Insertion Loss (dB) Max.

VSWR Max.

Power (Watts)

Dimensions (Inches) W x L x T
NL8289T10

824 to 894

20

0.3

1.15:1

125

1.50 x 2.00 x 1.00
NL8996T10

890 to 960

18

0.4

1.25:1

125

1.50 x 2.00 x 1.00
NM1214T10

1200 to 1400

18

0.4

1.25:1

125

1.50 x 2.00 x 1.00
NM1417T10

1400 to 1700

18

0.4

1.25:1

125

1.50 x 2.00 x 1.00
NM1718T10

1710 to 1850

20

0.3

1.15:1

125

1.50 x 2.00 x 1.00
NM1719T10

1710 to 1990

18

0.4

1.25:1

125

1.50 x 2.00 x 1.00
NM1819T10

1850 to 1990

20

0.3

1.15:1

125

1.50 x 2.00 x 1.00

Description

This series of coaxial isolators from QUEST Microwave Inc. was developed to satisfy our customers' demand for high power applications in the 800 to 2000 MHz range. The sturdy design of these isolators is excellent for both commercial and military environments. The termination is placed inside the isolator to obtain maximum heat dissipation. Standard models are supplied with type N female connectors. Other connector types and higher power terminations are available upon request.

Please consult the factory for specific requirements.

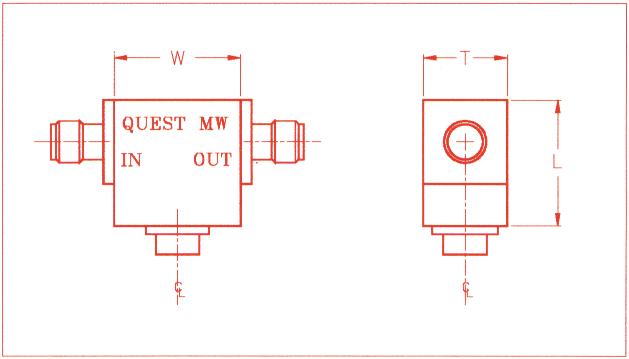

Octave Bandwidth Coaxial Isolators and Circulators

Model Number

Frequency (GHz)

Isolation (dB) Min.

Insertion Loss (dB) Max.

VSWR Max.

Power (Watts)

 Dimension (Inches) W x L x T
SM1020T01

1.0 to 2.0

18

0.5

1.25:1

10

2.75 x 2.75 x 1.00
SM2040T01

2.0 to 4.0

18

0.5

1.25:1

10

1.61 x 1.60 x 0.80
SM4080T01

4.0 to 8.0

18

0.4

1.25:1

10

l.00 x 1.00 x 0.57
SR0816T01

8.0 to l6.0

20

0.5

1.25:1

1

0.50 x 0.57 x 0.39

Description

QUEST Microwave's coaxial isolators and circulators provide excellent performance over octave frequency hands. Standard models are supplied with SMA female connectors. The standard terminations are rated at 10 watts. Model SR0816T01 has a one watt termination due to the smaller package size.

To request a circulator, replace the T in the model number with a C.

Note: Various configurations, with different connector types and high power terminations, are available. Other octave bands are also available. Please consult the factory for custom requirements.
Coaxial Series:

Model Number

Frequency

Isolation

Insertion Loss

VSWR

Power Fwd/Rev

Size in inches
SL7986T01

790 to 860 MHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.25xl.25x.75
SL8289T01

824 to 890 MHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.25xl.25x.75
SL8996T01

890 to 960 MHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.25xl.25x.75
SM1214T01

1.2 to 1.4 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.25xl.25x.75
SM1417T01

1.4 to 1.7 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.25xl.25x.75
　
SM1718T01

1.7 to 1.85 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

75w / 10w

1.00xl.00x.63
SM1720T01

1.7 to 2.0 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.00xl.00x.63
SM1820T01

1.85 to 2.0 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

75w / 10w

1.00xl.00x.63
SM1922T01

1.95 to 2.2 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.00xl.00x.63
SM2023T01

2.0 to 2.3 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.00xl.00x.63
SM2124T01

2.1 to 2.4 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.00xl.00x.63
SM2327T01

2.3 to 2.7 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.00xl.00x.63
SM2730T01

2.7 to 3.0 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

75w / 10w

1.00xl.00x.63
　
SM3643T01

3.6 to 4.3 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

10w / 2w

.75x.75 x.50
SM4450T01

4.4 to 5.0 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

10w / 2w

.75x.75 x.50
SM5459T01

5.4 to 5.9 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

10w / 2w

.75x.75 x.50
SM5865T01

5.8 to 6.5 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

10w / 2w

.75x.75 x.50
SM6485T01

6.4 to 8.5 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

10w / 2w

.75x.75 x.50
　 　 　 　 　 　 　
SR0812T01

8.0 to 12.4 GHz

20 dB Min.

0.4 dB Max.

1.25 : 1 Max.

5w / 1w

.50x.57x.39
SR1015T01

l0.0 to 15.0 GHz

23 dB Min.

0.5 dB Max.

1.15 : 1 Max.

60w / 1 w

.50x.57x.39
SR1414T01

14.0 to 14.5 GHz

23 dB Min.

0.3 dB Max.

1.15 : 1 Max.

10w / 1w

.50x.57x.39
SR1719T01

17.7 to l9.7 GHz

20 dB Min.

0.5 dB Max.

1.25 : 1 Max.

5w / 1w

.50x.57x.39
SR2123T01

21.2 to 23.6 GHz

20 dB Min.

0.5 dB Max.

1.25 : 1 Max.

5w / 1w

.50x.57x.39
