CUSTOM WORK STAGES ALSO AVAILABLE WORK STAGES!!
WST-15A
Adjustable Height Heated Work Stage with mechanical and vacuum clamping, surface dia.: 2.125 inches. Height adjustable from 2.4 to 3.0 inches. Also available: Model WST-15B with mechanical and vacuum clamping, surface dia.: 3.375 inches. Height adjustable from 2.5 to 3.0 inches.
WST-15CM
Rotating Heated Work Stage with a mechanical clamp, surface dia.: 3.188 inches. Height adjustable from 2.5 to 3.0 inches.
WST-15CV
Rotating Heated Work Stage with a vacuum clamp, surface dia.: 3.188 inches. Height adjustable from 2.5 to 3.0 inches.
WST-15CMS
Slotted Top on a Rotating Heated Work Stage with a mechanical clamp, surface dia.: 3.188 inches. Height adjustable from 2.5 to 3.0 inches. NOTE: Custom slotted tops are available on all of the HYBOND WST-15 Series Work Stages.

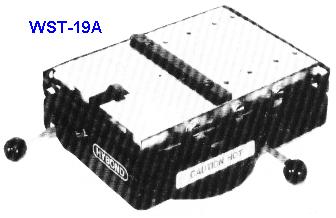

WST-19A
Adjustable Height Heated Work Stage with vacuum and mechanical clamping, surface dimensions: 4x6 inches. Height adjustable from 2.0 to 2.5 inches or 2.5 to 3.0 inches.
WST-19B
Adjustable Height Heated Work Stage with vacuum and mechanical clamping, surface dimensions: 4x4 inches. Height adjustable from 2.0 to 2.5 inches or 2.5 to 3.0 inches.
WST-65
Adjustable Height Heated Work Stage, surface dimensions: 10 x 6 inches (shown). Height adjustable from 2.75 to 5.75 inches, WST-70 Adjustable Height Heated Work Stage, surface dimensions: 10 x 8 inches.
MODEL-400A
External Temperature Controller for all HYBOND Work Stages, also compatible with other brands of wire bonders.
