 Manual Microwave Tuners, MMT

　

　

　

　

Modular Cost-Effective Pulsed IV

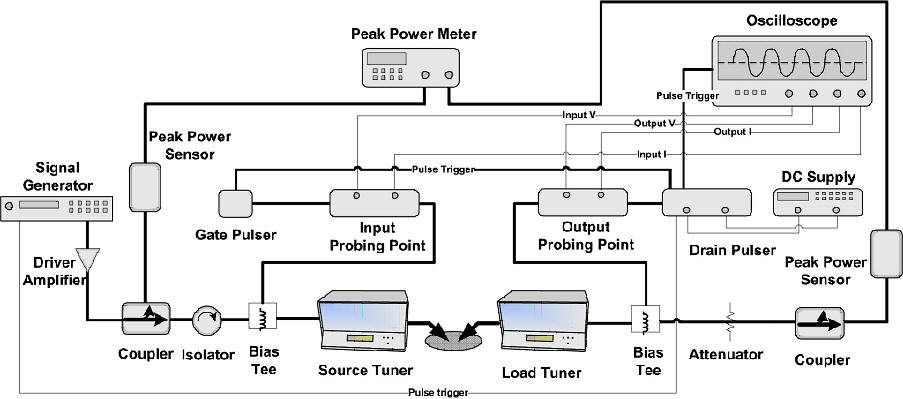

Pulsed IV and Pulsed Load Pull Solutions!

The Focus Pulsed IV system is available as an integrated solution or as a modular cost effective alternative for users, who already own DC power supplies, computers and digital oscilloscopes, which can be hooked up with Focus' Drain and Gate Pulsers to configure a pulsed IV test setup. The Focus pulsed IV capability (PIV) is also configurable to a Pulsed Load Pull (PLP) setup when a pulsed RF source and Peak power meter are included... more

　

　



　

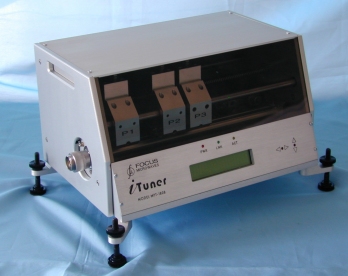

Multi-Purpose Multi-Harmonic Tuner MPT

Low-Frequency Tuners
(10MHz to 100MHz)

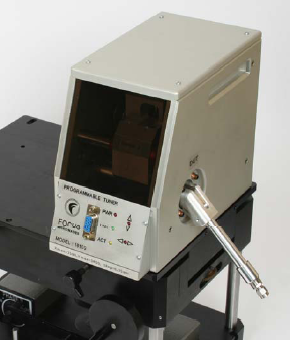

 High-Reflection Low-Loss Integrated
-Bendline Tuner

　

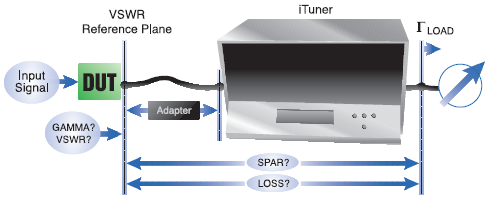

User-Programmable iTuner

　

By Product Line

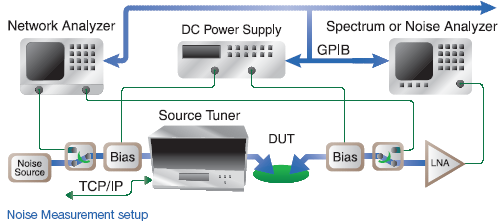

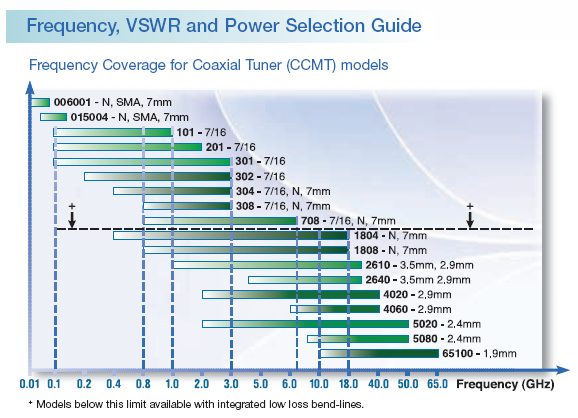

Focus products can be used for a big variety of load pull and noise measurement applications over the widest frequency range (30MHz to 110GHz) and power (up to 450W CW) available. The menus below show our product families classified by Product Line...
　

Automatic Tuners

Fundamental Wideband Tuners

Multi-Purpose Multi-Harmonic Tuners

High Reflection Tuners

Harmonic Rejection Tuners

Low Frequency (<100MHz) Tuners

　

Measurement and Characterization Software

Measurement Software

LP-Lab (for LabView)

Load Pull Explorer

Turnkey Load Pull and Noise Solutions

Please specify your requirements (application, frequency range, type of DUT...)

　

Setup Accessories

Transistor Test Test Fixtures

VNA TRL Calibration Kits

Tuner Probe Stations and Integrated Solutions

Tuner 3Axis Positoners

iConverter (Converts Maury ATS® to User Programmable iTuners)

Manual Tuners

Customized Solutions

By Capability

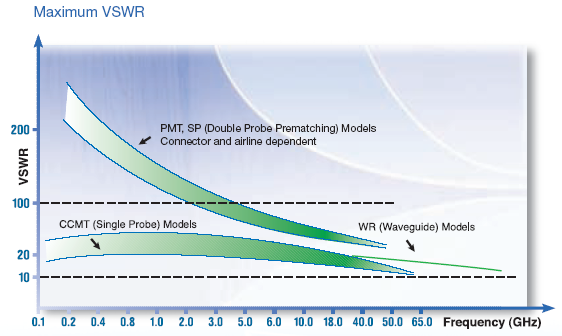

Focus tuners can be used for a big variety of applications over the widest frequency range available. The menus below  show the tuner families classified by Capability...



By Application

Providing the RF Industry with Inovative and Reliable Solutions for the Characterization of Active RF Devices.

　

Manual Microwave Tuners, MMT (with Harmonic Tuning Capability) for frequencies between 0.4 and 50 GHz !!

Manual Microwave Tuners are designed for critical RF impedance matching operations, like Load Pull and Noise measurements. MMTs use parallel plate airlines (slablines) and one or two sliding carriages with one vertical micrometer screw and a microwave probe (slug) each. The microwave probes and slablines are designed to generate high reflection factors over a very wide frequency band (such as 0.8 to 18 GHz with typical VSWR of 20:1). The two independently adjustable carriages allow mutual prematching of the probes and thus selectively extremely high VSWR (greater than 50:1). The sliding mechanism and the probe layout ensure long lasting operation, high reproducibility and insensitivity to vibrations. Manual Microwave Tuners are manufactured for frequencies from 400 MHz to 50 GHz, using a variety of connector types. When one of the two wideband probes is replaced by a resonant head(1) the manual tuners can be used for independent tuning of the harmonic impedance at 2fo with very high VSWR (>30:1).

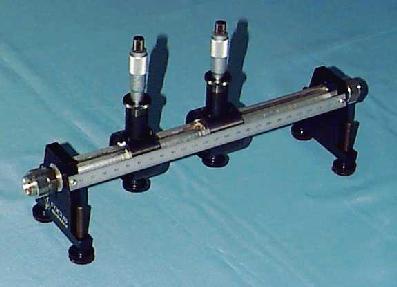

Manual Microwave Tuner, model MMT-1808 (0.8 to 18 GHz)
Manual Microwave Tuner (MMT) at a glance:
  • Frequency Range (different models): 0.4 to 50.0 GHz
  • VSWR Tuning Range (wideband) 1.04:1 to 20:1
  • Phase Tuning Range 0 to 360 degrees
  • Instantaneous Bandwidth up to 5 octaves
  • Prematching capability (narrow band) for VSWR 50:1
  • Insertion Loss (frequency dependent): 0.1 to 0.9 dB
  • Connector types: APC-7, 3.5, 2.9, 2.4, N, SMA
  • Option: Independent Harmonic Tuning

Manual Microwave Tuner, model MMT-4005 (5.0 to 40 GHz)
